240v Ground Fault Protected Plug

240V GFEP “PLUG-IN” POWER CONNECTION

(Integrated 30mA Ground-Fault Equipment Protection)

The Easiest Way to Power Your 240V System.

No electrician? No problem. The 240V GFEP Protected Plug is the ultimate solution for DIYers and contractors who need to power a 240V heat cable system without swapping out a circuit breaker. We’ve taken the complex safety requirements of the National Electric Code (NEC) and built them directly into the head of the power cord.

WHEN TO USE THIS PLUG

Understanding the “Hierarchy of Protection” At Heatcable.com, we believe in doing things the right way.

• Primary Recommendation: We always recommend installing a 2-Pole GFEP Circuit Breaker at the panel or using a GFEP Controller as your first source of protection. This is the most robust method.

• The Alternative: However, upgrading an old electrical panel isn’t always possible. When a GFEP cannot be applied at the breaker or controller, this plug should be added as the alternative. It provides the mandatory safety and code compliance in a simple, plug-and-play format.

⚠️ CRITICAL INSTALLATION WARNING

DO NOT “STACK” GFI PROTECTION. Before plugging this in, check your electrical panel. You cannot use this GFEP plug on a circuit that is already protected by a GFCI breaker.

• The Conflict: If your 240V circuit already has a GFCI breaker installed, plugging this device in will create a conflict where the two safety devices “fight” each other.

• The Result: Most of the time, this conflict will cause a nuisance trip at the breaker or the plug itself, shutting off your heat cable.

• The Fix: To avoid nuisance tripping, you must have exactly one source of protection. You need to choose between these two setups:

  • Option 1 (Use this Plug): Install a Standard Breaker at the panel and use this GFEP Power Cord.

  • Option 2 (Hardwire): Install a proper GFEP Breaker at the panel and use a Standard Power Cord.

  • Note: Do not plug this device into a circuit that is already GFCI protected. You cannot “stack” safety devices.

WHY THIS IS A PRO CHOICE

Usually, to run a 240V system correctly, you have to buy an expensive 2-pole GFEP breaker. This plug solves that problem. By integrating the protection into the cord itself, you can connect to a standard 240V outlet and instantly have a code-compliant, safe system.

• Integrated Safety: Features built-in 30mA Ground-Fault Equipment Protection (GFEP). This detects electrical leakage and shuts off power to prevent fire or shock.

• Plug-and-Play Simplicity: Turns a standard 240V receptacle into a heat-cable-safe power source.

• Visual Indicator: The lighted plug head lets you know immediately that power is flowing to your roof.

THE “30mA” SECRET (Why standard protection trips)

Eric Wimmer explains: “A lot of people try to use standard 5mA Ground Fault protection (like a bathroom outlet) for heat cable, only to have it trip the second they turn it on.

The Reason: Heat cable acts like a capacitor or battery. When the system is initially energized, the cable consumes power and momentarily holds it, creating a slight delay before the return load balances out. A sensitive 5mA breaker detects this temporary imbalance as a ‘leak’ and trips immediately.

The Solution: This plug is rated at 30mA—the code-required ‘Sweet Spot.’ It is designed to ride out that initial capacitive surge without nuisance tripping, ensuring your system runs reliably while still protecting the equipment.”

🔥 PRO-TIPS FROM THE FIELD

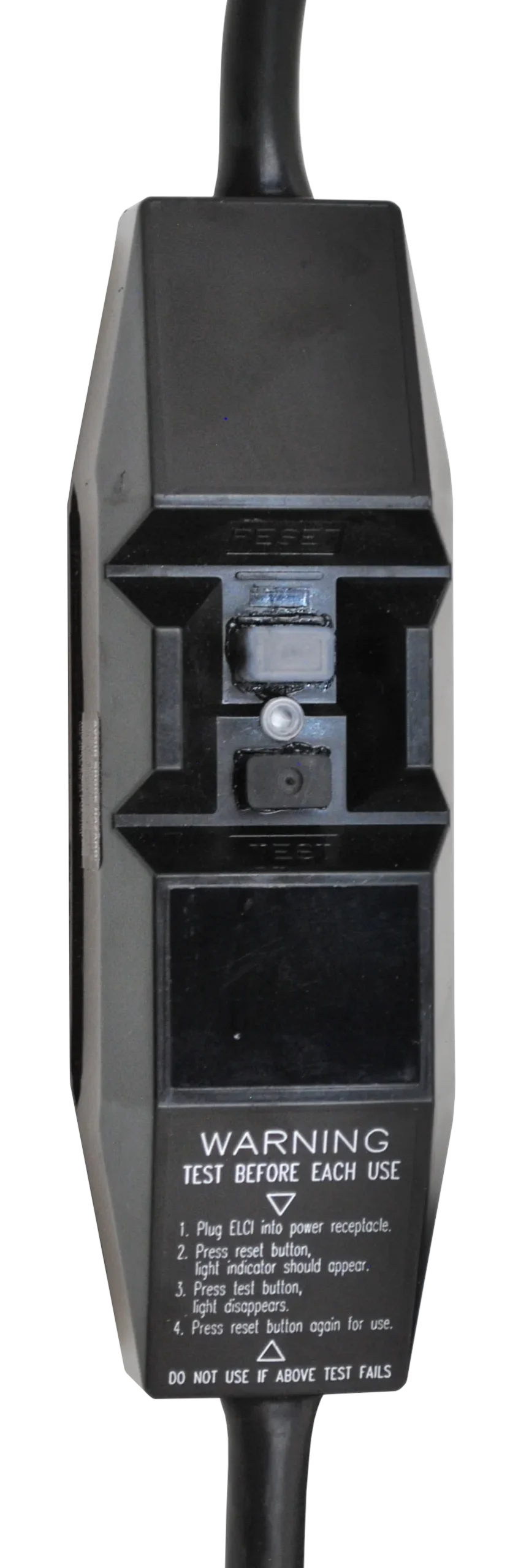

• The “Test” Button: Just like a standard outlet, this plug has TEST and RESET buttons. We recommend pressing the TEST button at the start of every winter season to ensure the safety mechanism is active.

• The “Drip Loop”: When plugging this in, always leave a small loop of cord hanging below the outlet. This ensures water runs down the cord and drips off the bottom, rather than running right into the receptacle.

⚠️ COMPATIBILITY WARNINGS

• 240V ONLY: This plug is designed strictly for 240V applications. Do not attempt to use this on a 120V outlet.

• CHECK YOUR RECEPTACLE: 240V outlets come in many shapes (NEMA 6-15, 6-20, etc.). Ensure your wall outlet matches the prong configuration of this plug.

• NO EXTENSION CORDS: This device must be plugged directly into a wall receptacle. Using an extension cord adds resistance that can overheat the circuit and create a fire hazard.
